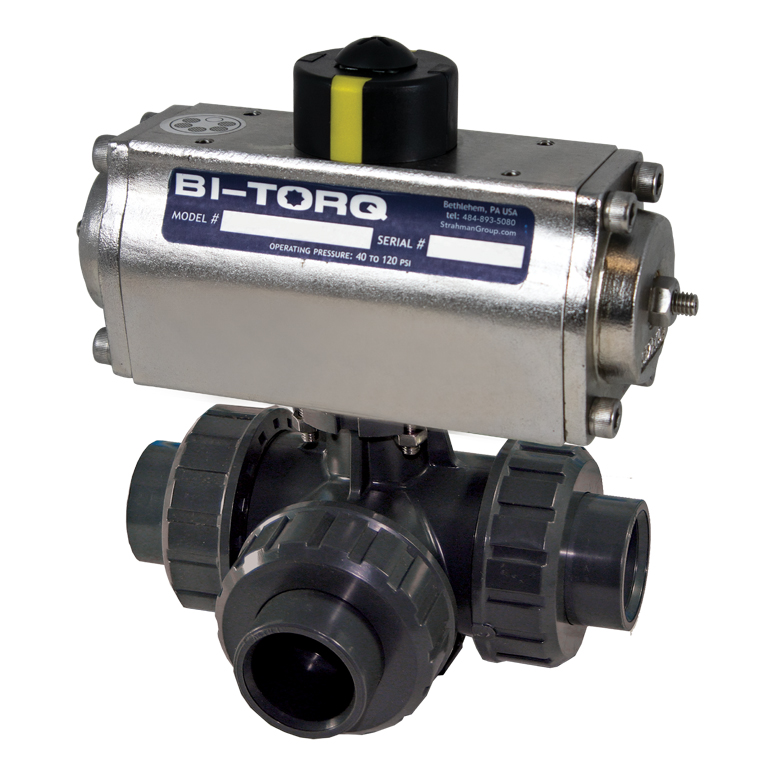

IC-3W (3-Way) Pneumatic Actuated PVC Ball Valves
$590.00
CODE:
IC-3WL-05-32-DA-PN
AVAILABILITY: In stock
Description
Valve Features
-
3-Way PVC valves (CPVC is optional)
-
1/2” through 2” size range
-
TFE® seats
-
EPDM, or Viton® body o-rings
-
True union style
-
Threaded or Socket Weld ends
-
3-seat design ideal for automation
Pressure Rating
-
235 PSI at 73°F
Temperature Rating
-
+140° F Maximum PVC
-
+212° F Maximum CPVC
Valve Size Cv Coefficient Rating* 1/2" 13.7 3/4" 26.6 1" 53.20 1-1/4" 73.50 1-1/2" 119 2" 224
-
* straight through port |
Pneumatic Features
-
Rack and pinion design
-
NAMUR accessory mounting
-
Spring return and double acting
-
Visual indicator
- Optional SS construction
Please note that the above product image is representative of products in this series and while we try to be as accurate as possible, the product you receive may slightly differ depending on valve size. Please refer to data sheets for dimensions and technical drawings.
