Metal Seated MS Series

Description

Frequent sampling of chemical and refinery products is a necessary function during the manufacturing process. However, many of these samples are currently taken into open containers with little or no safety measures to protect operators from product overage or accidental spills. Our Sampling Valves are used to draw a live sample from the process without failure – even under the harshest conditions.

Strahman designed our Metal Seated Sampling Valve, which is dimensionally the same as our standard SV Series but is suitable for use in ANSI Class 600, 1000°F applications. Our Metal Seated Sampling Valves feature a metal-to-metal seal and a one-piece piston design that minimizes dead areas. The maintenance-friendly design of the M Seal system provides long and reliable valve performance and is suitable for almost all process conditions and high-temperature service.

Our line of Accessories further enhances its safety features and functionality. Additionally, Spare Parts are often recommended for routine maintenance.

Metal Seated MS Series Features:

• Rugged investment cast body construction for long-lasting service in challenging environments

• The standard body is 316 SS; other materials are also available, such as Alloy 20, Nickel, Hastelloy B or C, Monel, Titanium, Inconel, and other metals by request

• MNPT inlet x FNPT outlet connection; Threaded, Flanged, or Socket Weld connections available by request

• Metal to metal packing meets ANSI Class IV shutoff

• Dual sealing ring arrangement keeps the valve from leaking into the atmosphere

• No internal dead spot cavity - the piston fills the valve interior, resulting in a valid live sample every time

• Precision-machined piston clears out any material that may solidify within the body during regular operation;

• Standard piston extensions are 2", 4" and 6" plus custom sizes upon request in +/= 1/16" increments

• Optional piston extension breaks through scale build-up to prevent contamination or ­­ build-up

• Our standard valve is manual, multi-turn hand crank operation; other available options include handwheel, gear operator, pneumatic or hydraulic cylinder, chain wheel, or extended crank options upon request

A Strahman Sampling Valve provides users with safe, effective, and consistent product sample extractions from the pipeline under high pressure or high vacuum conditions without fear of contamination or internal blockage. Strahman Piston-Type Sample Valves comply with the Pressure Equipment Directive (PED) No. 97/23/EC under SEP. Strahman Drain Valves 3” NB through 12” NB ANSI classes 150, 300, and 600 and 2” NB ANSI classes 300 and 600 comply under Category II liquid service.

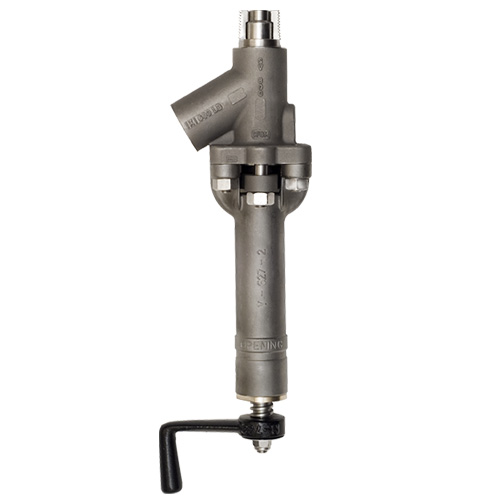

Please note that the above product image is representative of products in this series and while we try to be as accurate as possible, the product you receive may slightly differ depending on valve size. Please refer to data sheets for dimensions and technical drawings, if applicable.
