FLP-1/2" to 2" NPT or SCKT
Description
Our Thermal Shut Off Fusible Link Packages (FLP) with Ball Valves are a complete Fusible Link package with API 607 Fire-Safe certification. This series features threaded (NPT) or Socket Weld (SCKT) end connections, full port ball valves in sizes from 1/2" through 2" with varying lengths and heights (see chart below). We also offer full port ball valves with ANSI 150# Flanged 1/2" - 3" and ANSI 150# Flanged 4" - 6" with declutchable gearbox. Valve body is in stainless steel or carbon steel.
Fusible Link Packages features:
- FM approval on select assemblies; call our sales office for assistance in specifying the best product for your FM requirements
- API 607 fire safe ball valves up to 2000 PSI pressure rated
- Automatic shut-off in case of fire
- 1/2" through 2" NPT or Socket Weld connections
- Fire-safe body in Carbon Steel and Stainless Steel
Valve Size |
Laying Length |
Total Height |
|---|---|---|
| 1/2" | 2.95" | 6.25" |
| 3/4" | 3.14" | 6.50" |
| 1" | 3.54" | 7.13" |
| 1-1/4" | 4.33" | 10.25" |
| 1-1/2" | 4.72" | 10.63" |
| 2" | 5.51" | 11.69" |
- Ball valves have standard RTFE seats and graphoil body seals suitable for a wide range of media and applications
- Weatherproof spring pack and stainless steel top plate for maximum corrosion resistance
- Valve can still be manually operated even while armed on certain models
- Fusible Links are available from 165°F - 360°F
- Factory assembled and tested
Need a specific valve size not listed here or spare links? Contact us with your serial number and we’ll confirm the correct spare links required for your assembly.
It is highly recommended that Fusible Links be replaced aon an annual basis as a part of a regular safety maintenance program.

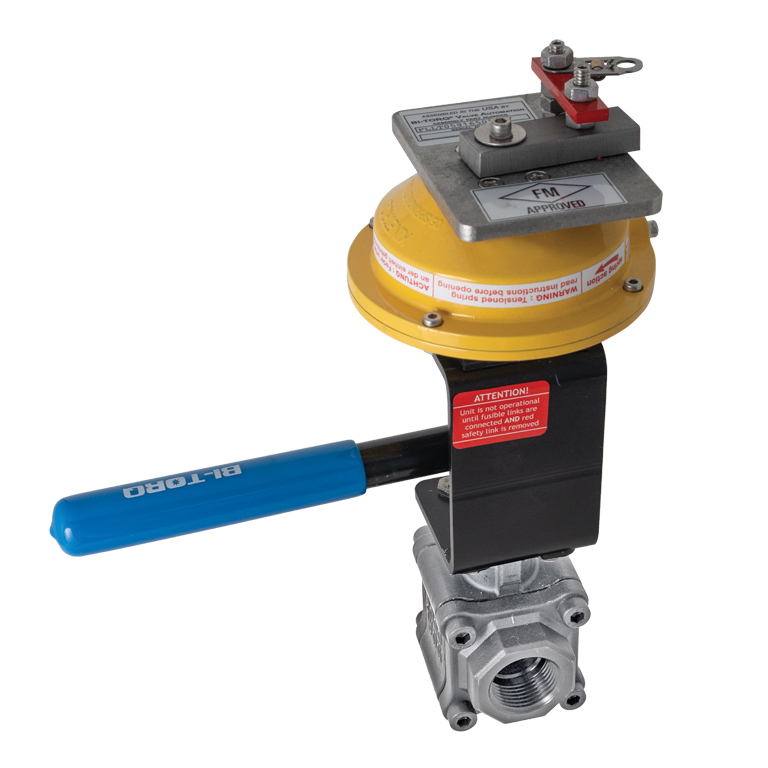

Please note that the above product image is representative of products in this series and while we try to be as accurate as possible, the product you receive may slightly differ depending on valve size. Please refer to data sheets for dimensions and technical drawings.
