Fire Safe Ball Valve 2 Piece Flanged in Stainless Steel with Pneumatic Actuator
$557.00
CODE:
FS-2PF-05-52-DA
AVAILABILITY: In stock
Description
Fire Safe Valve features:
-
Full port 2-pc valve in Stainless Steel body, ball, and stem
-
ANSI Class 150 engineered to ANSI B16.34
-
API 607 4th editon Fire-Safe approved
-
1/2” through 6” size range
-
Self-adjusting stem packing
-
DIN 50049-3.1B certificate
-
ISO mounting pad for easy automation
-
Gear Operators are available
Pressure Rating
-
ANSI Class 150 flanged
Temperature Rating
-
+400°F Maximum
- -20°F Minimum
| VALVE SIZE | FLOW COEFFICIENT (Cv) |
| 1/2" | 30 |
| 3/4" | 50 |
| 1" | 100 |
| 1-1/4" | 180 |
| 1-1/2" | 250 |
| 2" | 480 |
| 2-1/2" | 750 |
| 3" | 1300 |
| 4" | 2400 |
| 6" | 5400 |
Pneumatic Actuator features:
-
Rack and pinion design
-
NAMUR accessory mounting
-
Spring return and double acting
-
Visual indicators
- Optional SS construction

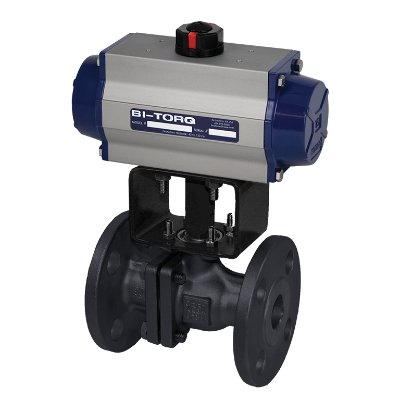

Please note that the above product image is representative of products in this series and while we try to be as accurate as possible, the product you receive may slightly differ depending on valve size. Please refer to data sheets for dimensions and technical drawings.
