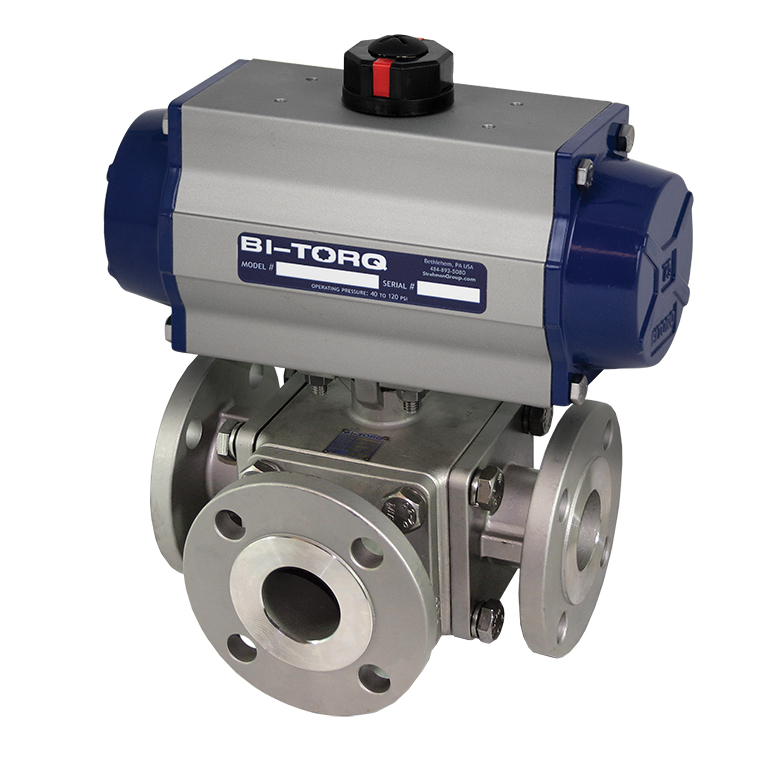

IS-3WF (3-Way SS Flanged) Pneumatic Actuated Stainless Steel Ball Valves
$732.00

CODE: IS-3WLF-05-52-DA-PN AVAILABILITY: In stock
Valve Size
Actuator Type
Body Material
Port
Sign in to Buy
BI TORQ IS 3WF PN AL
BI TORQ IS 3WF PN SS BI TORQ IS 3WF PN AL

Description

Valve Features

  • 3-Way full port stainless steel valves

  • 1/2” through 4” size range

  • Ideal for mixing, food and chemical applications

  • RTFE® seats through 2"; TFE 2-1/2" - 4"

  • ANSI 150# Flanged

  • 4-seat design for high cycle automation

  • Self-adjusting stem packing w/belleville washers

Pressure Rating

  • ANSI Class 150

Temperature Rating

  • +350°F Maximum

  • -4°F Minimum

Pneumatic Features

  • Rack and pinion design

  • NAMUR accessory mounting

  • Spring Return and Double Acting

  • Visual indicators

  • Aluminum body or Stainless Steel construction


Please note that the above product image is representative of products in this series and while we try to be as accurate as possible, the product you receive may slightly differ depending on valve size. Please refer to data sheets for dimensions and technical drawings.
