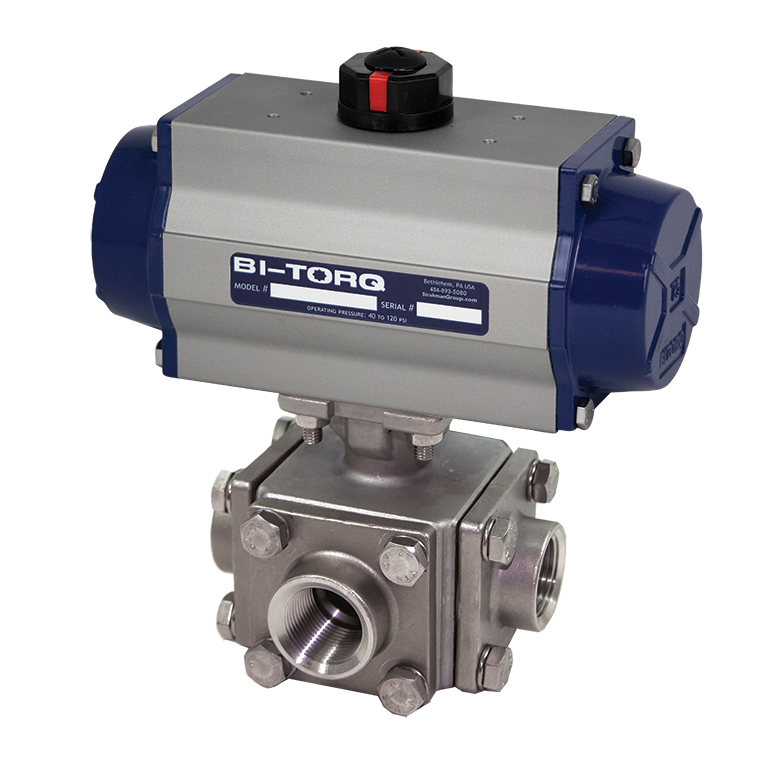

IS-3W (3-Way NPT) Pneumatic Actuated Stainless Steel Ball Valves
$525.00

CODE: IS-3WL-05-52-DA-PN AVAILABILITY: In stock
Valve Size
Actuator Type
Body Material
Port
Sign in to Buy
B TORQ pn is3w
BI TORQ IS 3W SS B TORQ pn is3w

Description

Valve Features

  • 3-Way full port stainless steel valves

  • 1/2” through 2” size range

  • Ideal for mixing, food and chemical applications

  • RTFE® seats and seals

  • Threaded or socket weld ends

  • 4-seat design for high cycle automation

  • Self-adjusting stem packing with belleville washers

Pressure Rating

  • 1000 PSI CWP

Temperature Rating

  • +350°F Maximum

  • -4°F Minimum

Pneumatic Features

  • Rack and pinion design

  • NAMUR accessory mounting

  • Spring return and double acting

  • Visual indicators

  • Optional SS construction


Please note that the above product image is representative of products in this series and while we try to be as accurate as possible, the product you receive may slightly differ depending on valve size. Please refer to data sheets for dimensions and technical drawings.
